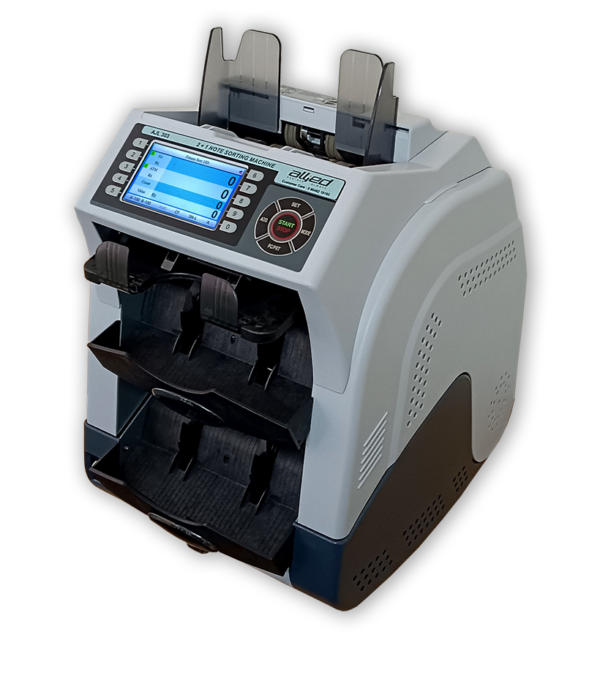

AJL 303 2+1 Note Sorting Machine

Specification and Features




  • Adopted the cutting-edge CIS, DSP technology.Identification and control system use FPGA+DSP structure, more CPU in processing.
  • Auto detect counterfeit banknote by using Light Image,IR Image, Spectrum Image, Magnetic Image, UV, Magnetic Ink, Thread Metal, IR Penetration, Multi point Thickness Measurement etc. Error code indicated and alarm sound when find fake banknote.
  • Detect incomplete, damaged, holes, fold, pen marks, oil, overlapped, spliced, tape and double on the banknote.
  • Separate the suspected notes from damaged notes,easy to organize notes, reduce the workload.
  • Have many functions, such as counting, version sorting,orientation sorting, sorting banknote for ATM machine,adding, batching, serial number checking and output,connecting LAN etc.
  • Adjustable sensitivity, auto storage, self checking after being switched and displaying the error code, restorable to default setting.
  • Super LCD display, attachable to portable-type LED display.
  • Software upgrading via internet or U disk.
  • Capacity: Hopper: 500 notes
    Stacker: 200 notes*2 stackers
    Reject Stacker: 100 notes
    NV Technology: CIS, UV, Magnetic, IR
    Speed Range: Counting: 1200 notes/min
    Sorting: 1000 notes/min,
    Serial Number Reading: 1000 notes/min
    Banknote Size Range: Width: 53-85mm, Length: 115-180mm
    Display: 4.3″ TFI Color Display
    Interface: LAN, RS232, USB
    Operating System: LINUX
    Power Supply: AC198V-240V 50/60Hz
    Power Consumption: 220W
    Dimensions: 330mm (W) × 405mm (D) × 430mm (H)
    Weight: 28kg
    Certification: CQC CB RoHS WEEE CE ECB
  • This machine is for sorting banknotes. It is necessary for people who work with the cache in various enterprises. Or it may be an individual who earns enough money that this one does not count as their hands. More and more people from the online casino industry are buying these. The Slotogate platform is the best platform that gives you a large selection of online casinos and where you can make various deposit methods including casino med entercash
Note :   Counting accuracy and detection errors may vary due to currency condition. The company is not liable for any losses caused by the same.
