AI 70
Allied AI 70
The Allied AI 60 note scanners has industry -leading Ai technology based Mix value currency authentication machine. This high performance bank note authentication machine with CIS (Contact Image Sensor) recognizes note denominations more efficiently, resulting in stops for difficult-to-read notes. That’s why this machine is more effect for finding Counterfeit notes. AI 60 captured every note’s serial number and stored. These database can be stored to a pen drive. Easy access to the banknote transport section to remove miscued notes and carryout.
- Detects UV (ultraviolet), MG (magnetic), MT (magnetic thread), Reflected IR mapping and Penetration IR mapping of banknotes.
- Auto adjustable technology easy software upgrade via USB port
- Full open channel design for better maintenance and jam removal
Specification
Detection CIS, MG, UV, MT, IR
Mode MIX, SORT, CNT, SG(Can be select Specific Denomination)
Counting Speed 800 / 1000 / 1200
Note Thickness Min (0.08mm) Max(0.12mm)
Note Size Min 60mm(width) x 110mm(Length)
Max 90mm(width) x 185mm(Length)
Feed System Roller Friction System
Hopper Capacity 200
Stacker Capacity 150 Notes
Dimension Weight 7.5KGS/ 16.5lb
Power Supply AC 230V +- 10%, 50/60Hz
Current Maximum 0.7A
Token Display System
Token Display System
Allied ADT Token display system is used to provide some number, as a result, these microcontroller based displays allow customers/visitors to wait without standing in queues. These are separately designed for smooth regulations at any busy place.
- Digital Display: 4″ height 7 segment LED(Matrix) digits
- Language selection by the customer
- Announcement languages – English, Hindi, Telugu, Tamil, Kannada, Malayalam etc…
- Complete keypad for random token number calling
- Next key for serial token calling
- Volume control
- Serially calling, randomly calling features
- Very good quality
- Serial communication design makes us very easy to use
- Repeat key for recall
- We can connect 10mt to 100mt from the base unit to calling display
Queue Management System

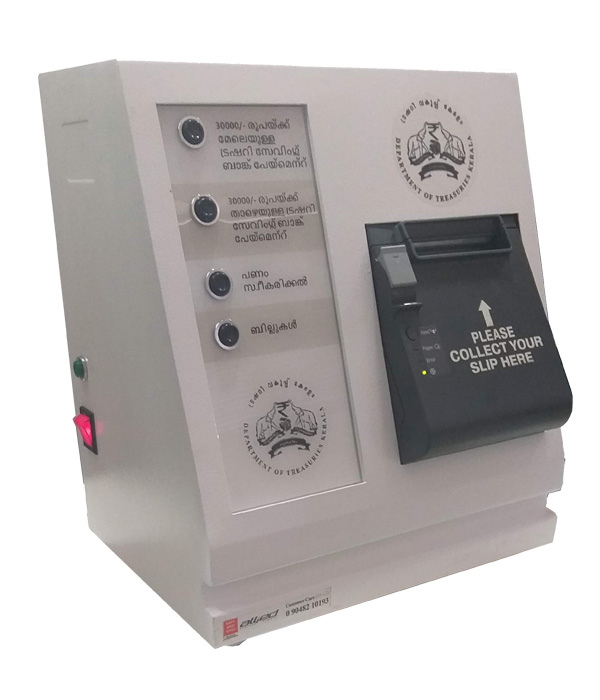

Integrated Queue Management System
Allied AIQ Queue Management System is Automatic Queue Measurement System for the large and unstructured queue. This system is a stand-alone embedded system. Using the latest cutting-edge technology for token cutting. Perfect in crowd and space management. The system is totally designed keeping in mind its demand for reliability.
MCI Type – Managing Controlling Informing
- Thermal Printer
- Edge Technology token cutting
- Wall mounted and metallic cabinet
- Details of Token :- Enter Firm Name, Section Name, Phone Number, Token Issued Time and Date, Token Number and Other details
- Token running display
- Token waiting display (The unit will display the number of customers is waiting in “Q”)
- Next and Recall token calling keys
- High Bright and Quality LED display
- Multi-line displays
- The display shows a separate counter number and Token number
- Multi-Language Calling
- Volume Controller
STAR 225 SC
Industrial Paper Shredders STAR 225 SC
Industrial Paper Shredders STAR 225 SC
Designed for continuous operation and high-capacity shredding
Often used for: – Document destruction – Recycling – Waste management – Security purposes
Equipped with heavy-duty cutting blades and motors
MCB fitted with motor protection system
- Cutters Alloy Steel
- Metallic body with powder coating for long durability
- Thermal Overload Protection
- It can shred CD / cards and can shred 400 KG papers per day on regular basis
- Mounted on rollers for flexible use
SPECIFICATION
Feed Opening 300 mm
Cut Type Straight Cut
Shred Width, mm 6/8 mm
Sheet Capacity 30 Sheets (A4)
Continuous Running 1-2 hours
Shred Speed 3 Meter Per Minute
Shredding Capacity 400 Kg Per Day
Motor 1 HP
Power Connection Single Phase
Bin Capacity 80 Litters
Weight 70 Kg
Dimension (LxWxH) 510 x 480 x 920 mm
B 20 RC
Mix Value Denomination Authentication Machine with Battery
Note counting machine with battery backup.
This machine is highly recommended solution for that has electricity fluctuations and power issue premises
Desktop banknote authenticating machine with mix value.
Specially designed for Indian Currency.
Most Suitable Machine for new version notes.
Updated Machine for new Rs.2000, new Rs.500, new Rs.200, new Rs.100, new Rs.50 and Rs.10
Software Upgradation
Multi Colour TFT Main Display
Large LED Side Display with Easy operation Buttons
Sleep Mode
Can be updated to any new Currency in Future
Free External Display
Hooper Capacity : 300 Notes
Counting Speed : 1150 Notes in One Minute
Battery : Lithium Ion,11.1 V, 5000mah
Charging Time : 45 – 90 mins
Battery Life : 1000 times(Charging and Discharging)
Backup Time : 28 Hours stand by or 1200 bundles
Power Supply : 230V AC, 50Hz
Dimension in mm : 300X 263X 206
AI 60
Allied AI 60
The Allied AI 60 note scanners has industry -leading Ai technology based Mix value currency authentication machine. This high performance bank note authentication machine with CIS (Contact Image Sensor) recognizes note denominations more efficiently, resulting in stops for difficult-to-read notes. That’s why this machine is more effect for finding Counterfeit notes. AI 60 captured every note’s serial number and stored. These database can be stored to a pen drive. Easy access to the banknote transport section to remove miscued notes and carryout.
- Detects UV (ultraviolet), MG (magnetic), MT (magnetic thread), Reflected IR mapping and Penetration IR mapping of banknotes.
- Auto adjustable technology easy software upgrade via USB port
- Full open channel design for better maintenance and jam removal
Specification
Detection CIS, MG, UV, MT, IR
Mode MIX, SORT, CNT, SG(Can be select Specific Denomination)
Counting Speed 800 / 1000 / 1200
Note Thickness Min (0.08mm) Max(0.12mm)
Note Size Min 60mm(width) x 110mm(Length)
Max 90mm(width) x 185mm(Length)
Feed System Roller Friction System
Hopper Capacity 200
Stacker Capacity 150 Notes
Dimension Weight 7.5KGS/ 16.5lb
Power Supply AC 230V +- 10%, 50/60Hz
Current Maximum 0.7A
AJL 303 2+1 Note Sorting Machine
BANK NOTE FITNESS SORTER (2+1)
BANK NOTE SORTER (2+1)
Features
- Adopted the cutting-edge CIS, DSP technology.Identification and control system use FPGA+DSP structure, more CPU in processing.
- Auto detect counterfeit banknote by using Light Image,IR Image, Spectrum Image, Magnetic Image, UV, Magnetic Ink, Thread Metal, IR Penetration, Multi point Thickness Measurement etc. Error code indicated and alarm sound when find fake banknote.
- Detect incomplete, damaged, holes, fold, pen marks, oil, overlapped, spliced, tape and double on the banknote.
- Separate the suspected notes from damaged notes,easy to organize notes, reduce the workload.
- Have many functions, such as counting, version sorting,orientation sorting, sorting banknote for ATM machine,adding, batching, serial number checking and output,connecting LAN etc.
- Adjustable sensitivity, auto storage, self checking after being switched and displaying the error code, restorable to default setting.
- Super LCD display, attachable to portable-type LED display.
- Software upgrading via internet or U disk.
-
Capacity: Hopper: 500 notes
Stacker: 200 notes*2 stackers
Reject Stacker: 100 notesNV Technology: CIS, UV, Magnetic, IR Speed Range: Counting: 1200 notes/min
Sorting: 1000 notes/min,
Serial Number Reading: 1000 notes/minBanknote Size Range: Width: 53-85mm, Length: 115-180mm Display: 4.3″ TFI Color Display Interface: LAN, RS232, USB Operating System: LINUX Power Supply: AC198V-240V 50/60Hz Power Consumption: 220W Dimensions: 330mm (W) × 405mm (D) × 430mm (H) Weight: 28kg Certification: CQC CB RoHS WEEE CE ECB - This machine is for sorting banknotes. It is necessary for people who work with the cache in various enterprises. Or it may be an individual who earns enough money that this one does not count as their hands. More and more people from the online casino industry are buying these. The Slotogate platform is the best platform that gives you a large selection of online casinos and where you can make various deposit methods including casino med entercash
ROBO
ROBO heavy duty bundle note counting machine
ROBO (Floor Model)
Bundled Note Counting Machine
Counting Speed : 100 Notes
Hopper Capacity : 150 Notes
Feed System : Vaccum Suction
Display : LED Display
Type of notes : Selector Mode – 3 Mode Display
Power Supply : 230V AC, 50Hz
Power Consumption : 500 Watts
Options : 6 Digit 7 Segment Customer Display
Extra customer display
Thermal Paper
Thermal Paper Roll for Token Machine, POS, etc...
Thermal Paper Roll for Token Machine, POS, etc…
Z 50
Mix Value Counting Machine
Banknote authenticating machine with mix value.
Most Suitable Machine for new version notes.
Updated Machine for new Rs.2000, new Rs.500, new Rs.200, new Rs.100, new Rs.50 , new Rs.20 and Rs.10
Software Upgradation
Absolute Counterfeit Detection with UV, MG, MT & IR and 3D 100% Ink detection on New Generation Indian Currencies.
Full report in main display with the number of notes, denominations and Total Value.
Free External Display
Long bright LCD blue display. Batch, Add and Count modes.
Error alarm. Half and Double Note detection.
UV, Size & 100% Ink detection. Extra Customer display.
Self-examination function and Detection Sensitivity adjustable.
Perfectly sort both New & Old generation Indian Currencies.
Notes issued Prior to 2005 will also be sorted as per RBI Circular.
Hooper Capacity : 200 Notes
Counting Speed : 1000 Notes in One Minute
Power Supply : 230V AC, 50Hz
Power Consumption : 75W
Dimension in mm : 330 X 245 X 205
